AE Hom iav Lined Reactor

AE hom iav lined reactor yog ib hom kev faib cov qauv ntsug hom agitating siab hlab ntsha, tseem hu ua "Qhib hom MSGLR" lossis "Flange type MSGLR" lossis "Clamped type MSGLR". Nws yog tsim thiab tsim khoom raws li tus qauv DIN-EN, thiab nws cov qauv feem ntau suav nrog cov iav uas tshem tau sab saum toj npog, iav lined nkoj lub cev nrog U hom tsho lossis sab nraud limpet coil tsho, sab saum toj ntxig iav lined agitator, lub cev muaj zog-iav diving ntaus ntawv, ncej foob, flush valve, kub thiab siab ntsuas ntaus ntawv thiab lwm yam. Cua sov thiab/los yog txias txoj kev yog nrog lub tsho los ntawm nruab nrab ntawm chav dej, dej los yog thermal roj.

STANDARD PRODUCT SPECIFICATION

CERTIFICATE

Peb tus khub

VISITORS THIAB EXHIBITION

HIGH PERFOMANCE GALSS LINING

TSEEM CEEB TSHAJ PLAWS

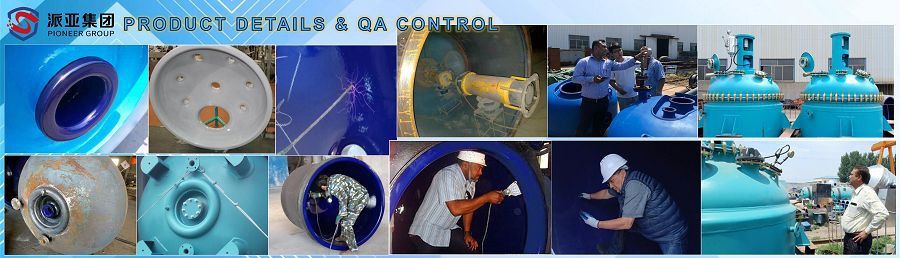

◆ Mechanical Performance Test rau steel substrate

◆ Tensile lub zog kuaj rau clamps

◆ Kev ntsuas kev tiv thaiv corrosion rau iav hauv ob sab phlu / enamel nrog ntsuas bar lossis thaiv

◆ Weld kev soj ntsuam nrog lub taub hau: RT-100 feem pua ​​thiab plhaub: RT-20 feem pua

◆ Nozzles txoj hauj lwm thiab kev soj ntsuam flatness

◆ Kev tshuaj xyuas qhov pom ntawm cov iav txheej tom qab tua

◆ Lined iav thickness nrhiav tau tom qab tua

◆ 20kV spark test rau cov iav txheej tom qab tua

◆ Hydraulic xeem rau Jacket thiab Vessel

◆ Tsis muaj-load khiav so thiab ua haujlwm nrog dej los ntsuas qhov kev ua haujlwm ntawm agitating & hluav taws xob tswj qhov system

◆ 10kV txim taws kuaj thiab tshuaj xyuas tiav rau cov txheej iav txheej ua ntej xa khoom

GLASS LINED REACTOR MAINTENANCE

Lub crux ntawm lub neej ntev, kev noj qab haus huv kev pab cuam rau iav lined reactor yog ib qho kev tshuaj xyuas thiab tu lub sij hawm uas yog tsim los rau thaum ntxov nrhiav thiab nrhiav tau ntawm kev puas tsuaj. Ib qho tawg me me los yog pinhole, yog tias tsis kho tam sim ntawd, tuaj yeem ua rau corrosion ntawm steel qauv thiab tuaj yeem ua rau cov khoom puas tsuaj loj. Cov txheej txheem tshuaj xyuas pib nrog kev kuaj xyuas kom meej thaum xa cov khoom siv iav mus rau qhov chaw cog khoom kom ntseeg tau tias nws tsis puas thaum lub sijhawm thauj mus los. Tom qab ntawd, cov cuab yeej siv yuav tsum tau tshuaj xyuas ntawm kev saib xyuas tsis tu ncua txij li ob peb zaug hauv ib xyoos, mus rau ib zaug txhua ob xyoos raws li qhov hnyav ntawm kev pabcuam. Ntau zaus los sis tseem nrhiav tau tas mus li yuav ua tau yog tias cov kev khiav hauj lwm mob hnyav heev, los yog xav tias puas tsuaj.

Daim ntawv teev kev saib xyuas zoo rau cov iav lined reactor yuav tsum muaj xws li: kev tshuaj xyuas qhov muag ntawm cov iav lined; txim taws kuaj rau cov cim qhia ntawm kab iav txheej tsis ua hauj lwm; lined iav thickness nrhiav tau; tshuaj xyuas ntawm tantalum kho plugs thiab thaj ua rau thaj (yog tias muaj); nozzle flange foob thiab kev sib txuas; tsho flange foob thiab kev sib txuas. Raws li nyob rau hauv cov khoom siv pa, daim ntawv teev npe yuav tsum suav nrog kev ua haujlwm ntawm lub cev muaj zog thiab tsav tsheb, lub tshuab foob, lubricating system rau bearing thiab reducer, hluav taws xob tswj ntaus ntawv thiab lwm yam (yog tias tsim nyog).

CEEB TOOM Cov khoom thaum lub sij hawm kho thiab ua haujlwm ntawm cov khoom siv iav

FAQ

1.Our MOQ yog ib txheej ntawm txhua yam khoom siv.

2.Our chaw nres nkoj yog Qingdao seaport, PRChina

3.Our lub sij hawm xa khoom yog los ntawm 60 mus rau 120 hnub tom qab peb tau txais 30 feem pua ​​​​ntawm cov nyiaj tso nyiaj thiab paub meej tias cov duab kos rau cov khoom sib txawv.

4.Our khoom warranty lub sij hawm yog ib xyoos los ntawm tus me nyuam.

5.Peb lub sij hawm them nyiaj ntau tshaj yog 30 feem pua ​​​​ntawm cov nyiaj cog lus los ntawm T / T siab tshaj li tso nyiaj, tshuav 70 feem pua ​​​​ntawm T / T lossis L / C thaum pom.

6.Yog tias koj xav tau daim ntawv pov thawj qhov teeb meem los ntawm tus neeg thib peb, thov qhia rau peb paub.
